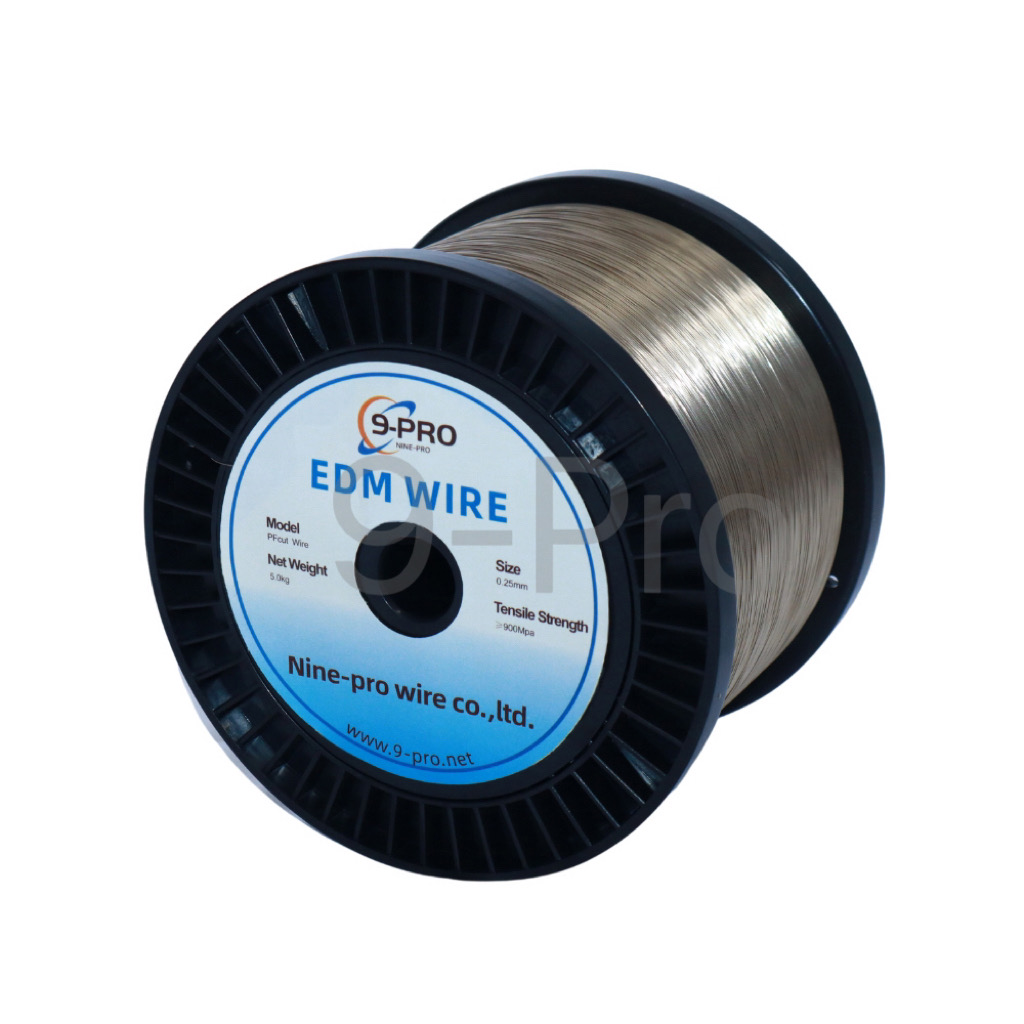

PFcut Wire Series
Product Feature
- High-speed coated wire.
- Suitable for most production efficiency preferredmachines. Especially suitable for processing difficult-to-process materials such as tungsten, graphite and etc.
- Higher processing precision.
- Suitable for auto-threading machines.
- Cutting speed 20% higher than brass wire.
Message: Interested in learning more? Fill out our quick inquiry form and we'll get back to you with all the details right away!
- Product Series
- PFcut

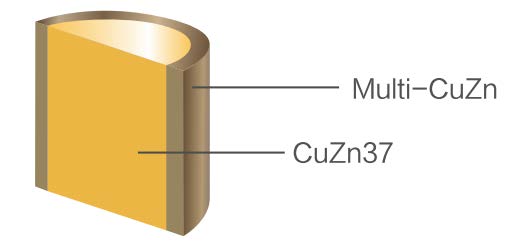

- Material
- CuZn37
- Surface
- Multi-CuZn
- Tensile Strength
- ≥900MPa
- Conductivity
- ≥20%IACS
- Color
- Gold Grey
High-speed PFcut wire is a high-performance wire that performs far better than typical copper/zinc=63%/37% high-speed wire. Not only does it cut faster than regular wire, but it burns cleaner, which also saves you money on other EDM consumables like EDM filters and EDM rails.
Suitable for most production efficiency preferred machines. Especially suitable for processing difficult-to-machine materials such as tungsten and graphite.
This is an excellent all-round wire that allows for higher precision machining, cost-effectively reducing operations from precision cutting to rough machining.
It is very suitable for automatic threading. The surface of the wire is clean and smooth. More importantly, its cutting speed is increased by 20%. It is the best choice for cost performance and high performance.
If you're looking for a way to increase productivity while saving money, this is the wire for you.
Regarding delivery time:
The 5kg shaft is in stock and can be shipped immediately after ordering. The delivery time for 8kg and 10kg axles is 30 days, and the delivery time for other sizes is 45 days, please be informed!
- Φ[mm]
- 0.10
- 0.15
- 0.20
- 0.25
- 0.30
- P3
- P5
- P10
- P15
- DIN125
- DIN160
- DIN200
- DIN250
| Spool Type | Material | Outer Height D1(mm) | Inner Height D2(mm) | Inner Diameter d(mm) | Outer Width W1(mm) | Inner Width W2(mm) | Wire Weight | Weight tolerance(kg) |
| P3 | ABS(PS) | 130 | 80 | 20 | 110 | 90 | 3 | ±0.05 |
| P5 | ABS(PS) | 160 | 90 | 20 | 114 | 90 | 5 | ±0.05 |
| P10 | ABS | 200 | 90 | 25 | 135 | 110 | 10 | ±0.05 |
| P15 | ABS | 250 | 110 | 33 | 140 | 110 | 20 | ±0.05 |
| DIN125 | ABS | 125 | 80 | 20 | 125 | 100 | 3/3.5 | ±0.05 |
| DIN160 | ABS | 160 | 100 | 22 | 160 | 128 | 7/8 | ±0.05 |
| DIN200 | ABS | 200 | 124 | 22 | 250 | 160 | 15/16 | ±0.05 |
| DIN250 | ABS | 250 | 160 | 23 | 200 | 160 | 25 | ±0.05 |
Spool Drawing
